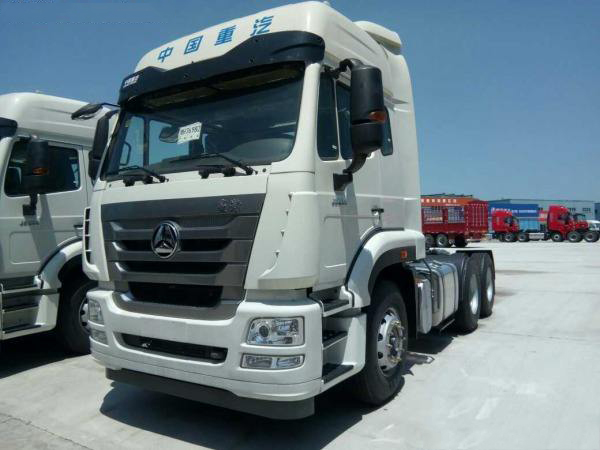

371 hp hohan 6*4 tractor head truck
Product Description
(2) 3 Axle
(3) Euro II emission.
(4) Horse Power 371HP
(5) Displacement: 9.726L (6) 2'' fifthwheel
(7) Certification: ISO9001 CCC,SGS Technical parameters
Cabin | Driving type 6*4 LHD/RHD Model ZZ H17/H18, AC | |
Overall Size(mm) | 6900*2500*3200 | |
Fifth wheel | 2'' or 3.5'' for option | |
Wheel base(mm) | 3325+1350 | |
GVW(kg) | 25000 | |
Front axle loading capacity(kg) | 1*7000 | |
Rear axle loading capacity(kg) | 2*13000 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Displacement | 9.726L | |
Bore*Stroke | 126*130mm | |
Hose Power(HP) | 371HP | |
Emission standard | Euro 2 | |
Max speed | 102km/h | |
Tire | 12.0-20, 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5 optional | |
Transmission | HW19710 transmission, 10 forward and 2 reverse | |
Steering | ZF8089 | |
Oil tank | 400L Aluminum alloy fuel tank | |
Brake system | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Electrics | Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light | |
Options | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data; ZF Gearbox PTO ADR |
Overseas branch

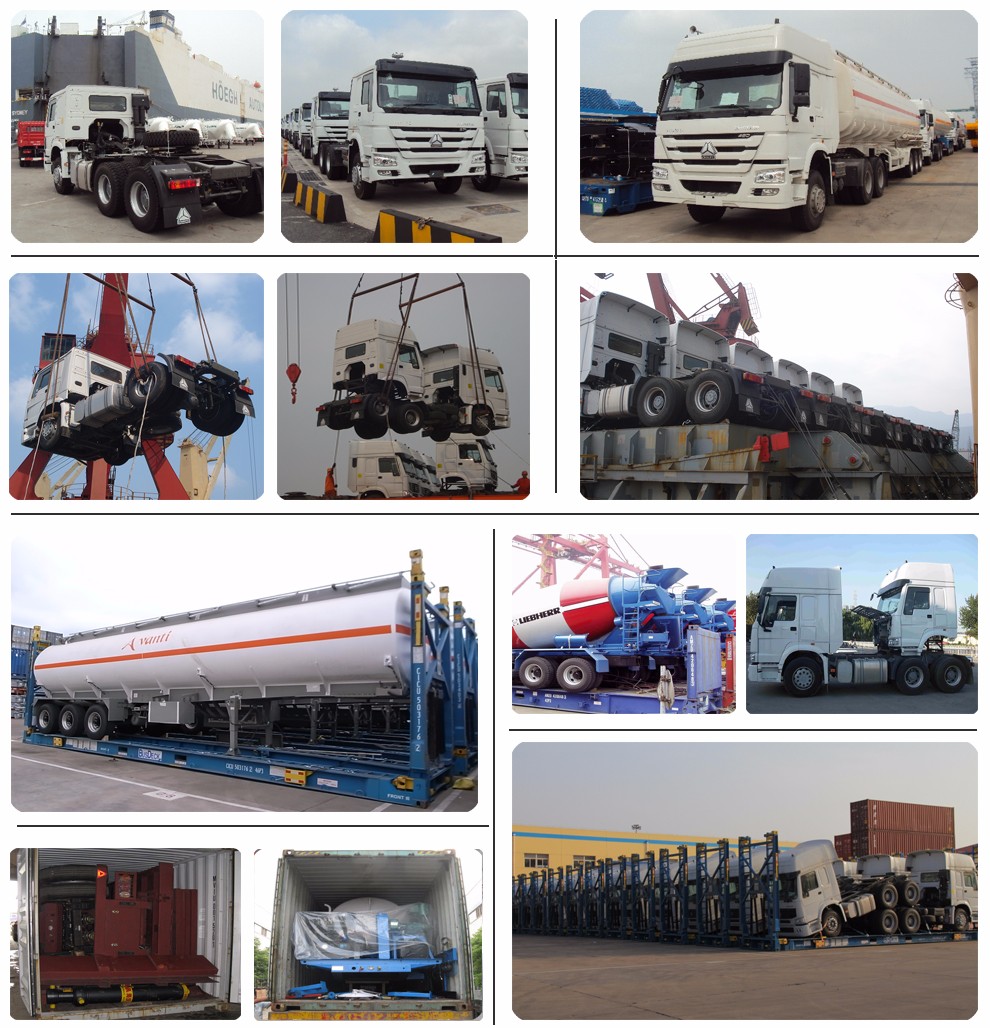

Oversea wareshouse with more than 100000 US dollors Spare Parts in stock, Oversea office with more than 15 professional engineers to help local customers Packaging & Shipping Company Information Contact IF THIS IS NOT WHAT YOU WANT, CLICK HERE TO VIEW MORE TRUCKS AND TRAILERS, OR CONTACT US AS FOLLOW: Contact Person: Aaron Luo Mobile/whatsapp: +86 130 7275 1191 (CHINA) +255 763 770 080 (TANZANIA) +260 975 000 088 (ZAMBIA) +63 939 643 3100 (PHILIPINES) Tel:+86 27 8556 4089 Fax:+86 27 8556 4189 Skype: luoyuanlai21120115 Facebook: Yuanlai Luo Wechat: aaron0701 Contact us if you need more details on 371 Hp Hohan 6*4 Tractor Head Truck. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 371 Hp Hohan 6*4 Tractor Head Truck、371 Hp Hohan 6*4 Tractor Head Truck. If these products fail to match your need, please contact us and we would like to provide relevant information.
